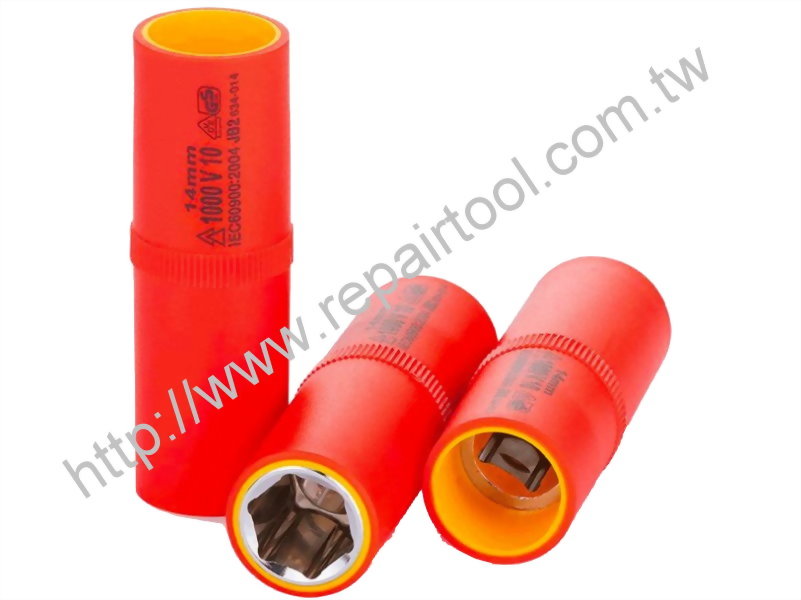

3/8"Dr. 1000V Insulated Socket
Model :
VDE934 Series
| Item No. | Size |
D1
mm
|
D2
mm
|
L1
mm
|
L2
mm
|
Weight
g
|
| VDE934007 | 7mm | 22.8 | 15.3 | 71.8 | 36.7 | 39 |
| VDE934008 | 8mm | 22.8 | 16.8 | 71.8 | 36.7 | 42 |
| VDE934010 | 10mm | 22.8 | 18.5 | 71.8 | 36.7 | 48 |
| VDE934011 | 11mm | 22.8 | 21.1 | 71.8 | 36.7 | 53 |
| VDE934012 | 12mm | 22.8 | 21.1 | 71.8 | 36.7 | 53 |
| VDE934013 | 13mm | 22.8 | 22.7 | 71.8 | 36.7 | 70 |
| VDE934014 | 14mm | 22.8 | 22.7 | 71.8 | 36.7 | 70 |
| VDE934015 | 15mm | 22.8 | 27 | 71.8 | 36.7 | 91 |
| VDE934017 | 17mm | 22.8 | 28.7 | 71.8 | 36.7 | 96 |
| VDE934019 | 19mm | 22.8 | 30.7 | 71.8 | 36.7 | 102 |
| VDE934022 | 22mm | 22.8 | 34.8 | 71.8 | 36.7 | 121 |
