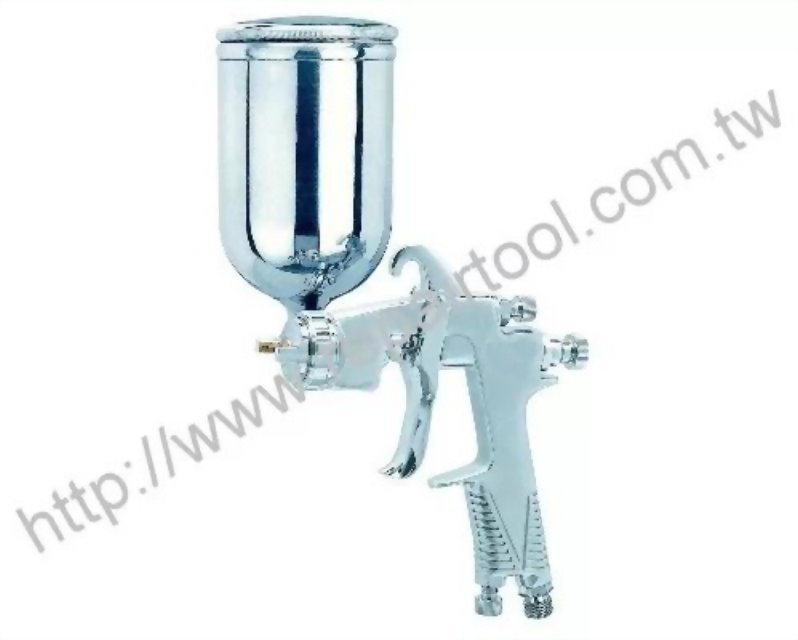

AIR SPRAY GUN
Model :
K-100G
| Model No K-100G | Type | Nozzle Size mm | Fluid Output cc/min | Pattern Width mm | Air Consumption l/min | Cup Capacity | Air Inlet | Fluit Inlet | Working Pressure | Gun Weight | Packing List |
| K-100G-08 | Gravity | 0.8 | 100 | 230 | 200 | 250 c.c or 400 c.c | 1/4" NPS | 1/4" NPS | 30-45 psi | 410g | 20pcs/17.72kg/18.72kg/2.5 |
| K-100G-10 | 1.0 | 115 | 240 | 200 | |||||||
| K-100G-13 | 1.3 | 190 | 270 | 220 | |||||||
| K-100G-15 | *1.5 | 210 | 280 | 220 | |||||||
| K-100G-18 | 1.8 | 250 | 280 | 230 | |||||||
| K-100G-20 | 2.0 | 280 | 290 | 230 | |||||||
| K-100G-25 | 2.5 | 310 | 290 | 230 |
