Transmission Pressure Gauge Set
Model :
M2513243
For all major manufacturer domestic and import vehicles.

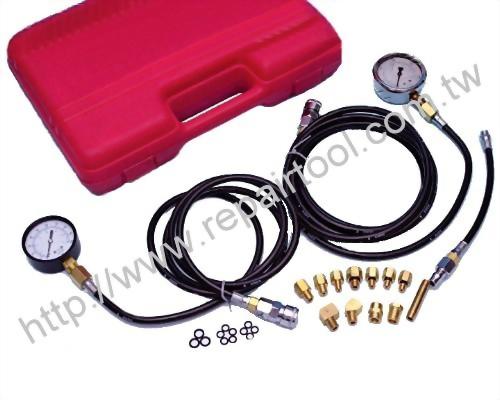

Set contains two gauge assemblies for high and low pressure ranges. Nine adaptors to test a wide variety of domestic and import automatic transmissions. Four special fittings are also included for connection to hard- to-reach test ports in areas requiring a 45° or 90° angle.
All contained in a plastic storage case.
PARTS LIST
| Description | Quantity | Description | Quantity |
| 0-100 PSI low pressure gauge assembly | 1 | 0-500 PSI high pressure gauge assembly | 1 |
| Adaptor hose 1/8-27 NPT | 1 | Adaptor 1/8-27 to 1/4-18 NPT | 1 |
| Adaptor 1/8-27 to 1/8-28 BSPT | 1 | Adaptor 1/8-27 to M10-1.0 | 1 |
| Fitting 1/8-27 90° steering elbow | 1 | Fitting 1/8-27 nipple 2" long | 1 |
| Fitting 1/8-27 coupling | 1 | Adaptor 1/8-27 to M8-1.0 | 1 |
| Adaptor 1/8-27 to M8-1.25 | 1 | Adaptor 1/8-27 to 5/16-24 NF | 1 |
| Adaptor 1/8-27 to 1/16-27 NPT | 1 | Fitting 1/8-27 45° steering elbow | 1 |
| Adaptor 1/8-27 to VW Audi | 1 |
|
|
