ALPHA MOTO High Pressure Air Shock Pump 300 psi max Compatible with Harley Davidson CB KZ GS XS 350 450 550 650 750 850i Mountain Bike Fork & Rear Suspension Work with Schaefer Air Valve

Model : P1108702A

Q'ty :

Description

RMI-TO-067

50pcs/CTN , 14.5KGS, 1.9' CUFT

Stock Available

【ESSENTAIL TOOL】:This premium air shock pump is the essential tool to adjust the compression on your fork for your liking, maximizing your mountain bike or motorcycle's performance by ensuring that your have optimal suspension to keep you in control over rough ground.
【NO AIR LOSS FEATURE】:Bleeder button on the side of the gauge allow user to release excess air from over pumping to reach the optimal pressure. Please make sure to gently release the button in a very light motion to allow it function properly as designed, a big push to the button will release the air too fast.
【BLEEDER BUTTON】:Bleeder button on the side of the gauge allow user to release excess air from over pumping to reach the optimal pressure. Please make sure to gently release the button in a very light motion to allow it function properly as designed, a big push to the button will release the air too fast. (Sometimes, a failed valve could also cause the bleeder button not work properly, sometimes, it requires valve to be replaced to ensure the pump work properly)
【SUPERIOR QUALITY】: Gauge is made of die case. Face dia: 1.5", reads 0-300 psi.
【YOUR SATISFACTION IS OUR GOAL】: We are confident that this Air shock pump is the most cost-effective one to get your job done, if you are not 100% satisfied, just contact us, we will work the issue out with you until you are 100% satisfied

Video For Reference.

https://www.youtube.com/watch?v=7abSm4YBW8Y

air shock pump

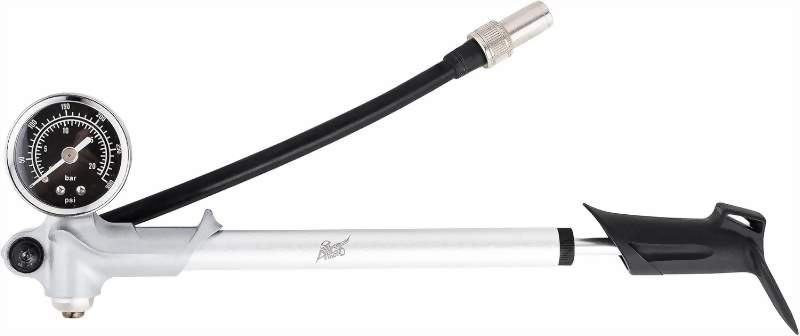

High Pressure Air Shock Pump 300 psi

This air shock pump is used to adjust air suspension pressure in front or rear suspensions. It can be used on Harley touring Dresser bagger (which use a pneumatic rear suspension system requires to be adjusted during each rider and luggage weight changes), or any motorcycle with air shocks, it also can be used on bicycles.

For Harley Davidson bikes, we recommend to use 0-60 PSI air shock pump, ASIN: B006ID37ZS , (just put in Amazon search bar, it will come up in the result.) as the manufacturer recommended setting is below 60 PSI.

High Pressure Air Shock Pump 300 psi max Compatible with Harley Davidson Suzuki Yamaha Honda Kawasak

Specification

Gauge is made of die case, face dia: 1.5"

Reads 0-300 psi

10 PSI Increments

Handle is made of aluminum 6063, overall length is about 9", takes very little room in your storage bag.

360 degree 180mm long swivel-style hose for easy access

Alpha moto motorcycle parts tool kits mirrors grips seal saddlebags Harley Davidson

No air escaping coupling

In the swivel head of the hose, there is a small built-in O-ring will seal in the valve stem.

When pump in the air, it presses down and opens the valve stem.

This neat feature will prevent any air from escaping during attaching or removing the pump from the valve stem

(if it doesn't register air when pumping, very likely, you need to replace the valve stem)

Alpha moto motorcycle parts tool kits mirrors grips seal saddlebags Harley Davidson

Built-in bleeder button

With the built-in air control bleeder button

the user can bleed the excess air from the suspension system until the desired pressure is achieved.

Simple use

Remove valve stem cap, thread the swivel head of the pump hose onto the valve stem
Pump the air shock pump, usually pump it up a little higher then the specific PSI you want.
Use the bleeder button to release excess air in order to reach the desired PSI.
Remove the pump, the O-ring in the swivel head will prevent any air from escaping out of the fork.
